Crawl Space Structural Repair Company Serving Greater St. Louis

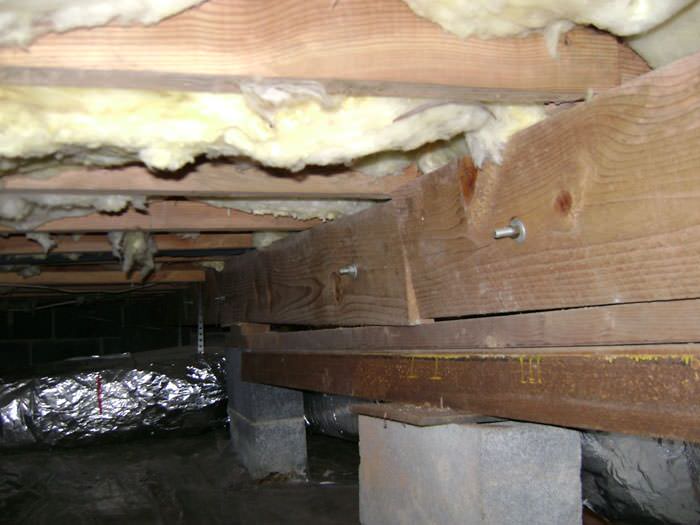

sagging crawl space with wooden shimming a Columbia crawl space

A beam begins to bend. Beams like this one provide mid-span support for floor joists in many crawl spaces. The concrete block supports for this beam have shifted and settled, causing the beam to bow downward. When the beam bends, the entire floor is affected.

Because it's built directly underneath your home, your crawl space plays a key role in your home's structural integrity. Crawl spaces bear this weight through the foundation walls and crawl space support columns.

However, many crawl spaces are designed with a support system that is either inadequate, rotting or has soils underneath the support posts that cannot bear the weight of your home.

In many cases, a failing crawl space structure can be resolved by installing crawl space supports. This is a fast job that can provide permanent, warrantied results. Typical installations can be completed in less than two days.

At Woods Basement Systems, Inc., we specialize in crawl space repairs of all types. If you're experiencing a structural problem with your crawl space, we have a solution for you. We offer free estimates in Springfield, St. Louis, St. Charles, and surrounding areas.

Crawl space support system

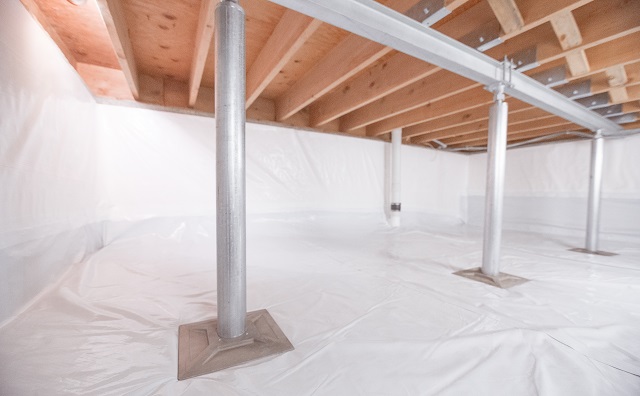

Crawl space structural support jacks installed in Marion

Strong, straight & adjustable. SmartJack® supports solve sagging floor problems in crawl spaces by stabilizing & leveling sagging beams.

The SmartJack® Crawl Space Stabilizer is an adjustable supplemental support system used for sagging crawl spaces.

It not only provides supplemental support to your failing structure -- it can also often lift failing floor joists or beams, restoring them to their original position.

This crawl space support system is unique in that it's made with strong, corrosion-resistant, galvanized steel. Because your system will not develop rust, it will remain adjustable for years, should you need to perform future adjustments.

The SmartJack® is available for installation throughout Illinois & Missouri, including St. Charles, Springfield, St. Louis and nearby areas.

SmartJack® Specifications

  • Fast, Year-Round Installation -- The SmartJack® can be installed year-round, with installations completing in about a day. There's no waiting time for concrete to cure!
  • Stronger Crawl Space Support -- Our crawl space support system can support vertical loads exceeding 60,000 pounds, which is far stronger than conventional concrete repairs.
  • Versatile Installation -- The SmartJack®'s portable size allows it to be installed in even the tightest of crawl spaces.
  • Superior Support -- Our support jacks do more than merely halt the downward movement of your floor. The SmartJack® may also be adjusted to try to lift the floor above to its original position.

Contact us for a free estimate

Worried about the structural integrity of your crawl space? Look no further than the professionals at Woods Basement Systems, Inc.. We offer free estimates in Decatur, Florissant, Champaign, Belleville, O'Fallon, East Saint Louis, St. Peters and many nearby areas in Illinois & Missouri - schedule yours today!

Foundation Failure

The foundation walls themselves can fail in a large number of ways. Most commonly, these walls will be damaged by foundation settling due to poor supporting soils. It's also very common for the walls to buckle inwards due to pressure from expansive soils outside the home.

If you have a structural issue with your foundation, it's important to contact a foundation specialist right away.

Sinking Crawl Space Supports

Sometimes, crawl space support pillars are built on soils that are not strong enough to support the weight of your home.

Over time, these supports will begin to sink into the soil. As they do, the floor they hold up will sink as well, leading to uneven floors and interior wall cracking.

Inadequate Structural Design

Sometimes, the contractor who builds a home will improperly space out the support beams that hold up your floor and interior structure.

When this happens, the floor may sink in the spans between each support, leading to damage to your home structure.

Rotting Floor Joists

When crawl spaces are damp, humid, or experience flooding, they become an ideal environment for mold and rot. Termites, carpenter ants, wood-eating beetles, and other damaging insects may also feed on organic materials in the crawl space.

As the wood deteriorates, it will no longer be able to support your home, leading to significant structural damage.
